TP Alpha
Little big punching press
The ideal machine to enter the world of punching, at affordable prices. It is the evolution of Tecnumerik: the advanced CNC functions and the rotating head allow the orientation of any type of tool, as well as the possibility of using multi-tools, drag tools for cutting, ribs and off-set, and threader.
The Speedy Setup system, which allows manual tool change in just 12 seconds, is a feature that makes it unique in the single-punch market.
Price starting from:
€ 89.000,00
Models
| U.M. | Alpha 256 | |
| Max. punching force | kN | 250 |
| Maximum thickness | mm | 6.5 |
| Work size (without reposition) | mm | 1250 x 1500 |
| Work size (with reposition) | mm | 1250 x 3000 |
The versatility of TP Alpha
You can carry out simple processing operations such as perforated sheet metal (grids), fine nibbling, copper bars and slits, but also more complex works such as ribs, lowering and threading, without interrupting the activities of larger plants (e.g. laser cutting or automatic punching machines).
Improve the sheet metal cutting process
With TP ALPHA you can go beyond the simple sheet metal cutting since you can easily implement deformation works such as slots, countersinks, logos, embossing. The TP Alpha can be employed for small/medium productions or combined with other cutting systems such as lasers and automatic punching machines.
Small and productive.
Thanks to the full rotation of all tools (auto-index technology), the TP Alpha allows you to perform complex operations and carry out nesting of elaborate parts.
Low cost perforated metal sheets
With TP Alpha you can manufacture perforated sheets (grids) quickly and cost-effectively. With punching technology you can also realize more sophisticated shapes, but the speed of performance will always be the same.
Small outside. Big inside.
TP Alpha has an incredible range of advanced features which are already integrated. Among them is the wheel tool management, which allows you to create ribs, bent edges and complex shapes on the sheet metal.
SPEEDY Setup
The world’s fastest tool change system
For a single-punch CNC punch press, tool change speed is an essential requirement, that’s why TP Alpha is equipped with the fastest and simplest tool change system on the market: the SPEEDY Setup. It takes just 12 seconds to set up the tool on the punch press.
Automate your punch press with Multi-tools
With the Multi-tool, the single-punch becomes a small automatic machine. You can switch from a single-tool station to one that can run up to 10 tools. Thanks to the integrated auto-index system, each tool, including those set up in the Multi-tool, can rotate from 0° to 360°.
STANDARD / SPECIAL
1
auto-index tools
MULTI-TOOL
4
auto-index tools
MULTI-TOOL
5
auto-index tools
MULTI-TOOL
10
auto-index tools
The most user-friendly punch press
TP Alpha is the easiest to use punching press thanks to its three different modes of operation: manual, semi-automatic and automatic. You can program it directly from the machine control panel using the graphic software TECNOCAM. The 18,5-inch FANUC touch-screen display and the customized HMI (Human Machine Interface) make the use of the machine even more immediate.
Manual
The punching operations and the movement of the axis are performed manually, using the pedal and the joystick installed on the control panel.
Semi-automatic
Automatic axis movement (as programmed) and manual punching, using the pedal.
Automatic
Once the program has been realized with the graphic software TECNOCAM, punching operations and axis movement are automatic.
Create programs in few minutes
Thanks to the TECNOCAM software installed on the punch press, programs can be created quickly and intuitively via 18,5-inch display.
Shape larger formats smoothly
Automatic metal sheet repositioning
This system makes it possible to process metal sheets that are larger than the X axis and it allows more than one repositioning of the sheet metal during the working process.
High power and low energy consumption
UP TO
25 Tons
OF POWER
ONLY
0,4 Kw
STAND-BY CONSUMPTION
UP TO
24
MONTHS WARRANTY
Servo drive
It is equipped with an advanced servo drive punching unit without any hydraulic oil, thus ensuring low energy consumption.
CNC Fanuc
TP Alpha is equipped with components provided by the world leader FANUC (CNC, motors, drives and PCs). FANUC guarantees the availability of spare parts for 25 years and assistance in 108 countries thanks to the widespread network of branches.
Small and easy-to-handle tools
TECHNOLOGY punching machines have always been equipped with the best punching tools. TP Alpha can be equipped with TRUMPF style tools but is totally compatible with TECHNOLOGY style tools.
TP Alpha in action
Highest connectivity and integration

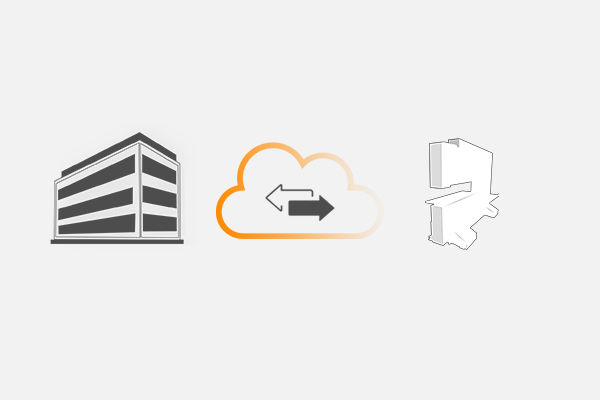

Teleassistance
With a simple Internet connection we can safely carry out a comprehensive error diagnosis, drastically reducing machine downtime.
Industry 4.0 Ready
Thanks to its innovative technologies, the new servo drive TP Alpha can be integrated into Industry 4.0 systems.
What our customers say
Despite the use of a laser cutting machine, why still the punch press? “Simply because it is simply UNIQUE. Not only because it is possible to make deformations that the laser does not allow, but also because it is able to create grids that, if made with the laser, would increase the cost of the finished piece at the expense of competitiveness”.
Get a quote or contact us
We can provide you with suggestions and explanations in Italian, English, Spanish, French, German and Spanish.
+39 0185 457115
